Microphone Modelling System

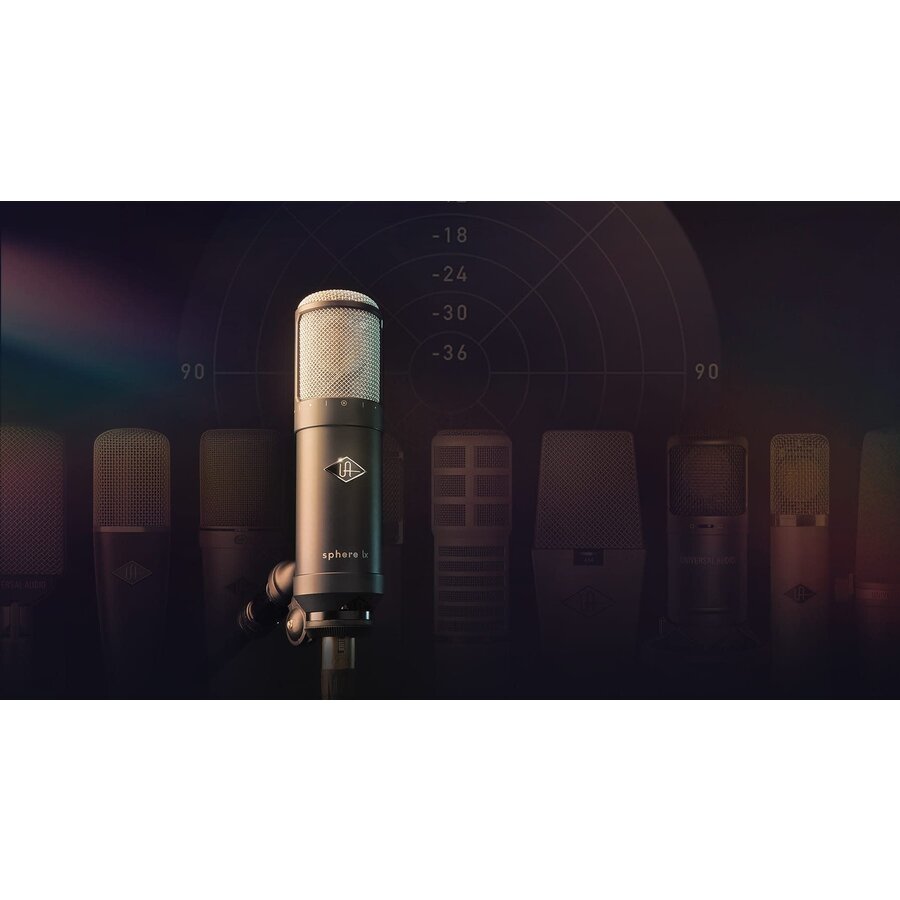

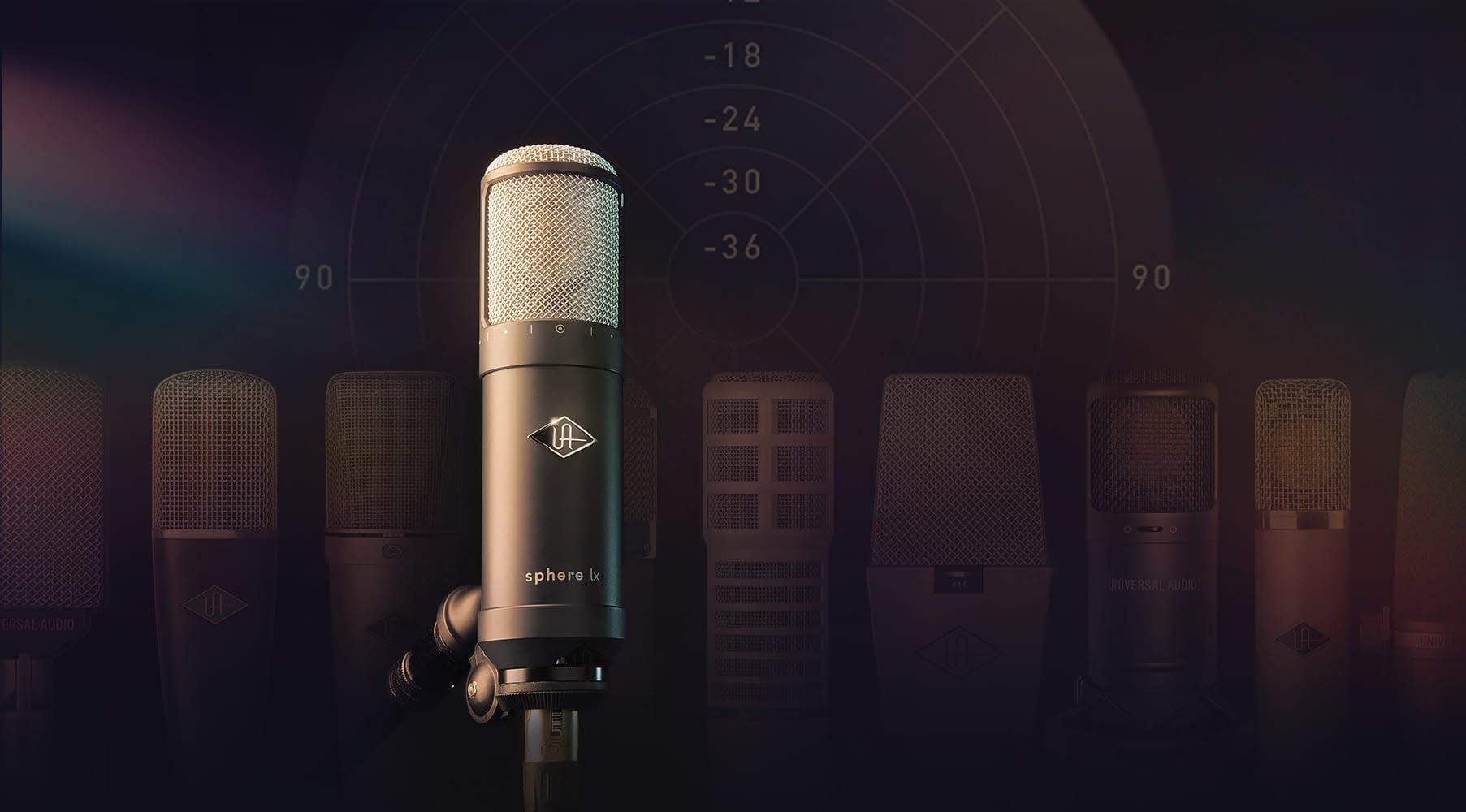

• Large-diaphragm condenser microphone for reproducing the sound characteristics of 38 classic ribbon, condenser and dynamic microphones
• 2.54 cm Double-diaphragm design (gold-plated)
• Dual mode for different microphone combinations
• Microphone type, polar pattern and other characteristics can be changed even after the recording has been made
• Sound of different microphones can be auditioned
• Reduce crosstalk, unwanted room colouration and other common recording problems using IsoSphere and Presets
• Attenuation options: -10db and -20dB
• Requires 48 V phantom power
• Polar pattern: Variable Dual Output
• Frequency range: 20 - 20,000 Hz
• Output impedance: 200 Ohm
• Max. sound pressure level: 145 dB SPL, 1% THD (with pad)
• Dynamic range: 135 dB
• Connection: XLR-m (5-pin)
• Dimensions (L x Ø): 195 x 50 mm
• Weight: 545 g
• Supported plug-in formats UAD, AAX Native, VST2, VST3, Audio Units (Mac only)
• Supported operating systems Native (AAX, VST and AU): Mac OSX 10.15 and higher, Windows 10 and 11 (64-bit)
• Supported operating systems Apollo interfaces and UAD-2 hardware (AAX, VST, AU and RTAS): Mac OSX 10.15 and higher, Windows 10 and 11.
• System requirements: Internet connection, compatible plug-in host application (DAW software) with support for AAX, VST2, VST3, AU or UAD, UA Connect for managing UADx plug-ins, two mic preamps with phantom power.

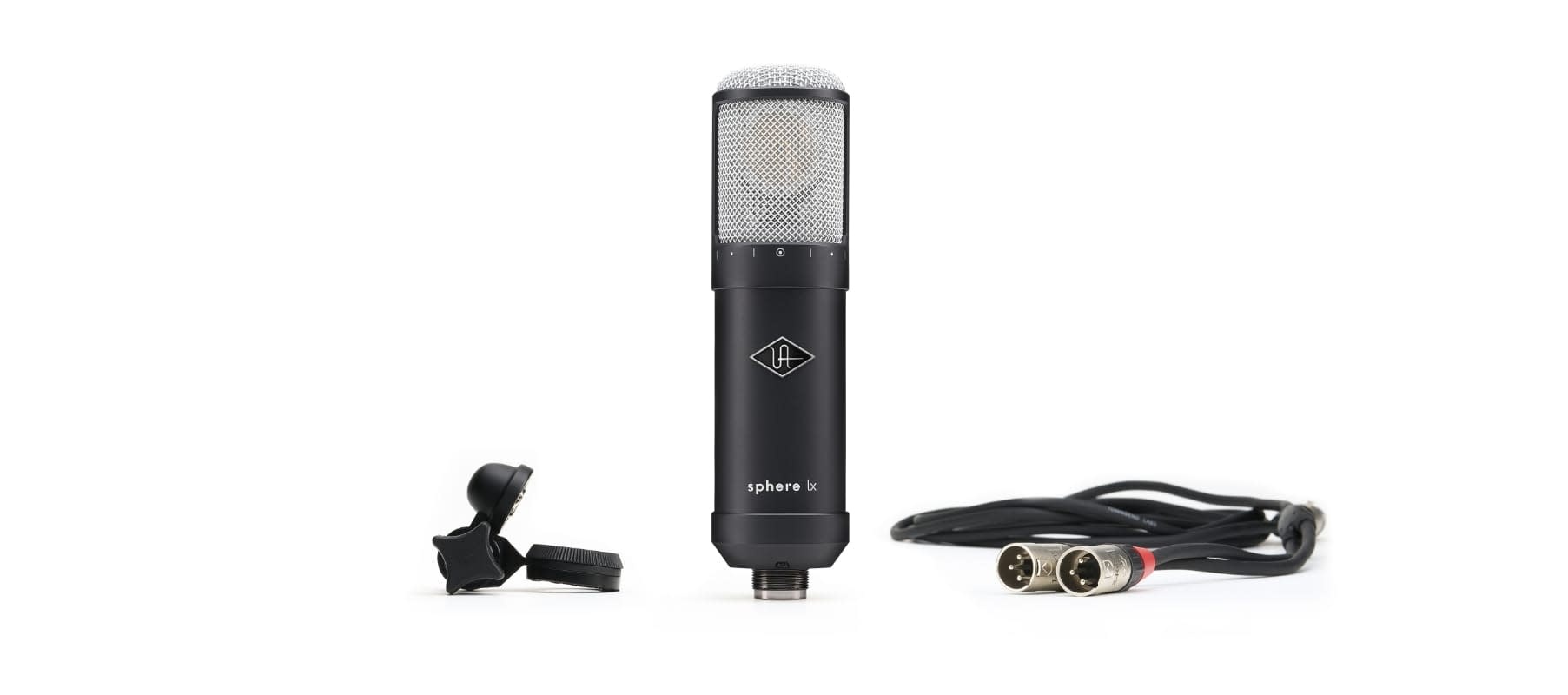

• Incl. microphone holder, 3 m split cable (5-pin XLR to 3-pin XLR) and a case
