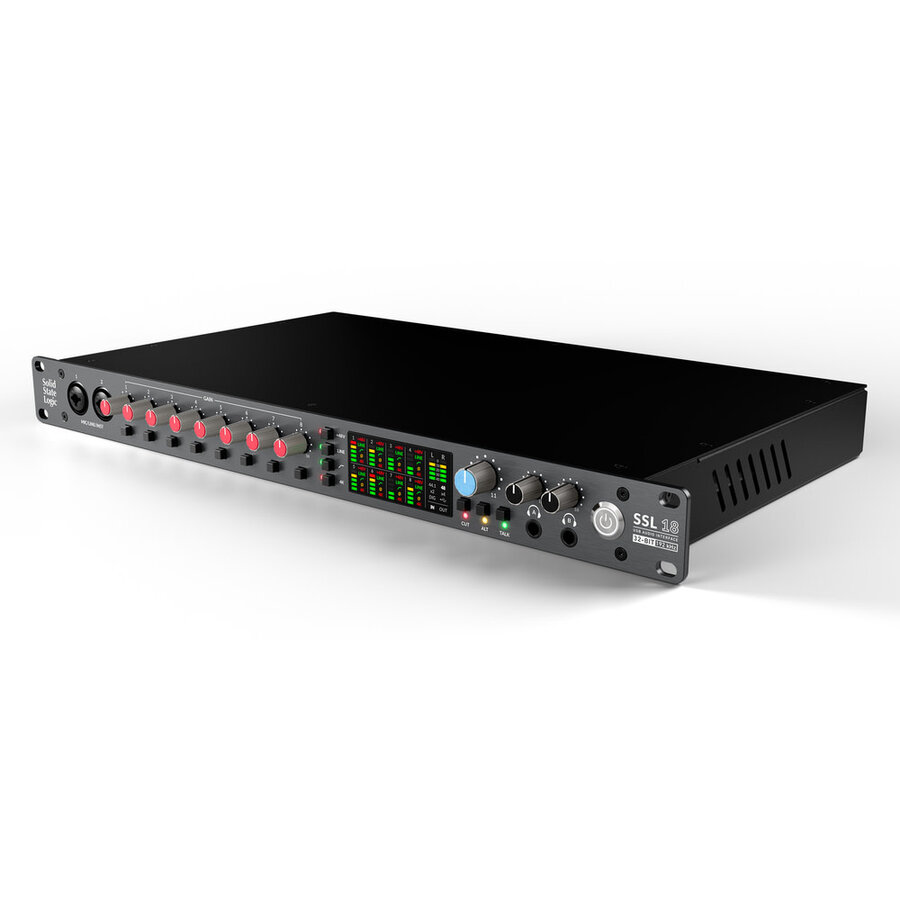

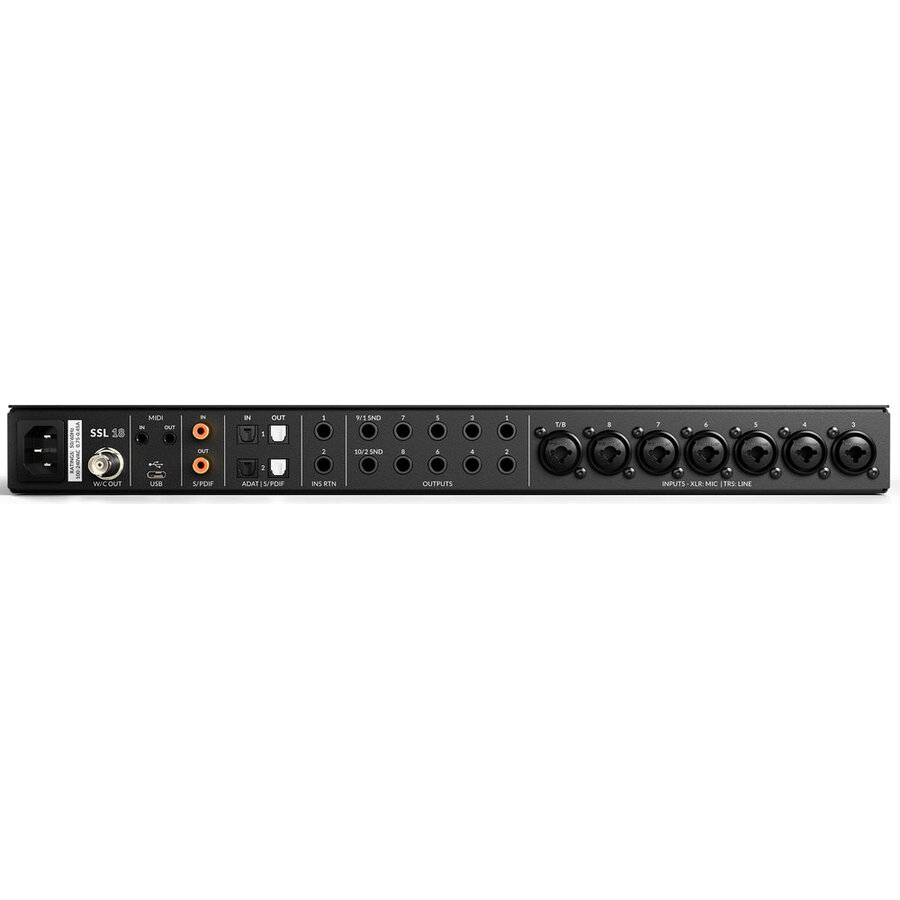

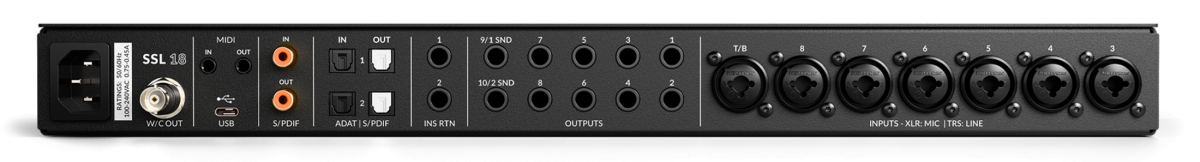

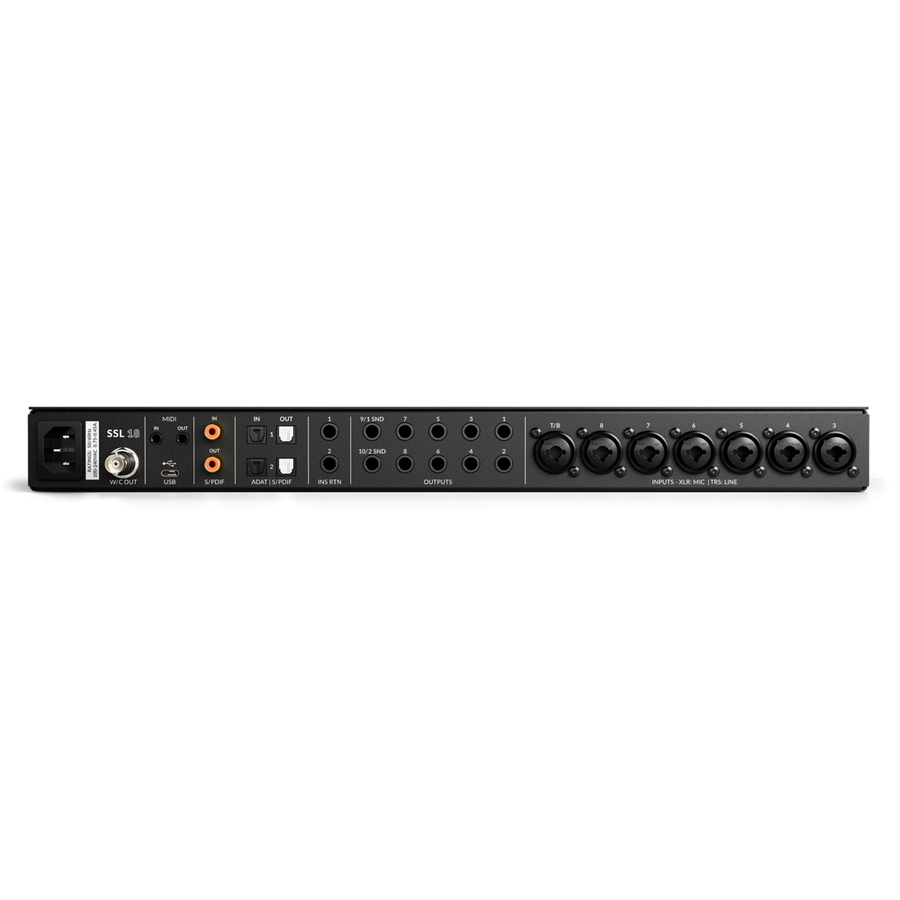

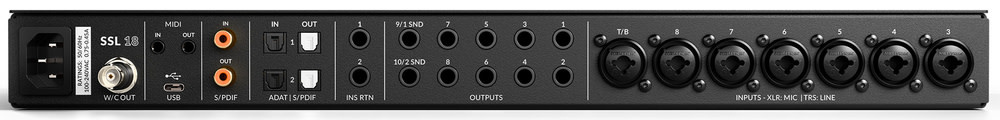

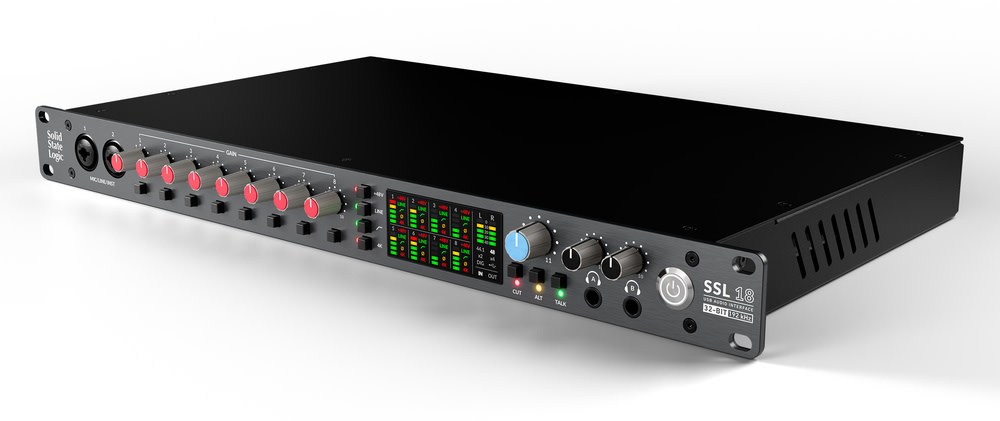

SSL - Solid State Logic - 18 - USB interface

Delivery time send e-mail to [email protected]

Article code 210000009573
SKU 210000009573

900,00

(1.089,00 Incl. tax )

Article code 210000009573
SKU 210000009573

Something else from this brand? E-mail us!

Seen a better price? E-mail us!

Something else from this brand? E-mail us!

Seen a better price? E-mail us!

Description
SSL 18 key features:
- 26-in/28-out USB-C audio interface for Mac and Windows.
- Next-generation 32-bit/192 kHz converters.
- 8 x Microphone/line-level inputs with 48V, HPF, and Phase Invert:
  - ‘Legacy 4K Analogue Enhancement’ colouration circuit on every input.
  - Configurable insert points for inputs 1 and 2.
  - Inputs 1 and 2 are switchable to instrument-level.
- 10 x Balanced line outputs:
  - Alternative speaker switching is available for pairs 1&2 and 3&4.
  - DC-coupled - capable of sending Control Voltage to synths and drum machines.
  - Professional +24 dBu operating levels with +9 dBu/+24 dBu level configuration options for pairs 1&2 and 3&4.
- 2 independent, powerful headphone outputs with dedicated level controls:
  - 3 mode options to suit different headphone impedances – Standard, High Sensitivity, High Impedance.
  - Create custom headphone mixes.
  - Re-purpose as line outputs.
- Dedicated Talkback input with analogue Listen Mic Compressor (LMC).
- 16 channels of ADAT I/O at 44.1/48 kHz, 8 channels at 96 kHz.
- 2 channels of S/PDIF (coaxial or optical).
- MIDI I/O on 3.5 mm TRS jacks.
- Clocking options – internal (clock signal available on Wordclock output), or clock from incoming ADAT or S/PDIF.
- Comprehensive management of all inputs and outputs via the SSL 18 low-latency mixer:
  - Create the control room mix, plus an additional 4 custom monitor mixes with ease – HP A (stereo), HP B (stereo), LINE 3-4 (stereo or dual mono).
  - Flexible Mirror Routing system to route any input or aux master directly to an output – perfect for feeding personal monitoring systems, external metering and outboard FX.
  - Customise the monitoring section front panel buttons to suit your workflow.
Add your review
0 stars based on 0 reviews

Description

SSL 18 key features:

26-in/28-out USB-C audio interface for Mac and Windows.
Next-generation 32-bit/192 kHz converters.
8 x Microphone/line-level inputs with 48V, HPF, and Phase Invert:
- ‘Legacy 4K Analogue Enhancement’ colouration circuit on every input.
- Configurable insert points for inputs 1 and 2.
- Inputs 1 and 2 are switchable to instrument-level.
10 x Balanced line outputs:
- Alternative speaker switching is available for pairs 1&2 and 3&4.
- DC-coupled - capable of sending Control Voltage to synths and drum machines.
- Professional +24 dBu operating levels with +9 dBu/+24 dBu level configuration options for pairs 1&2 and 3&4.
2 independent, powerful headphone outputs with dedicated level controls:
- 3 mode options to suit different headphone impedances – Standard, High Sensitivity, High Impedance.
- Create custom headphone mixes.
- Re-purpose as line outputs.
Dedicated Talkback input with analogue Listen Mic Compressor (LMC).
16 channels of ADAT I/O at 44.1/48 kHz, 8 channels at 96 kHz.
2 channels of S/PDIF (coaxial or optical).
MIDI I/O on 3.5 mm TRS jacks.
Clocking options – internal (clock signal available on Wordclock output), or clock from incoming ADAT or S/PDIF.

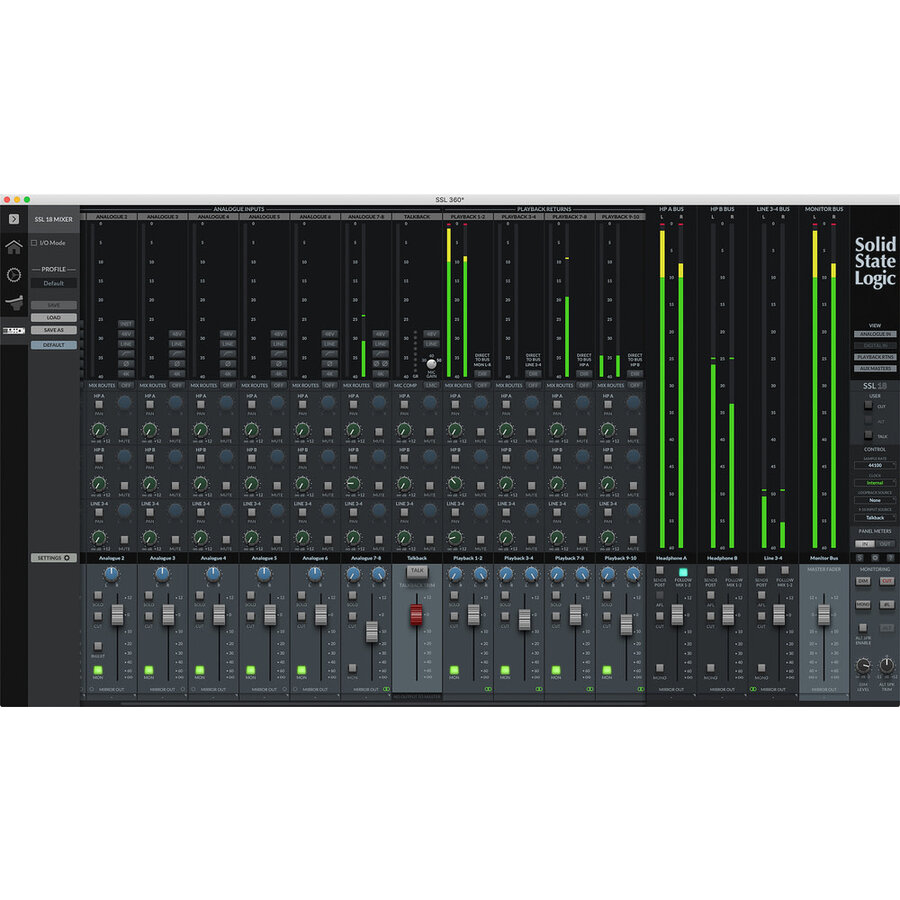

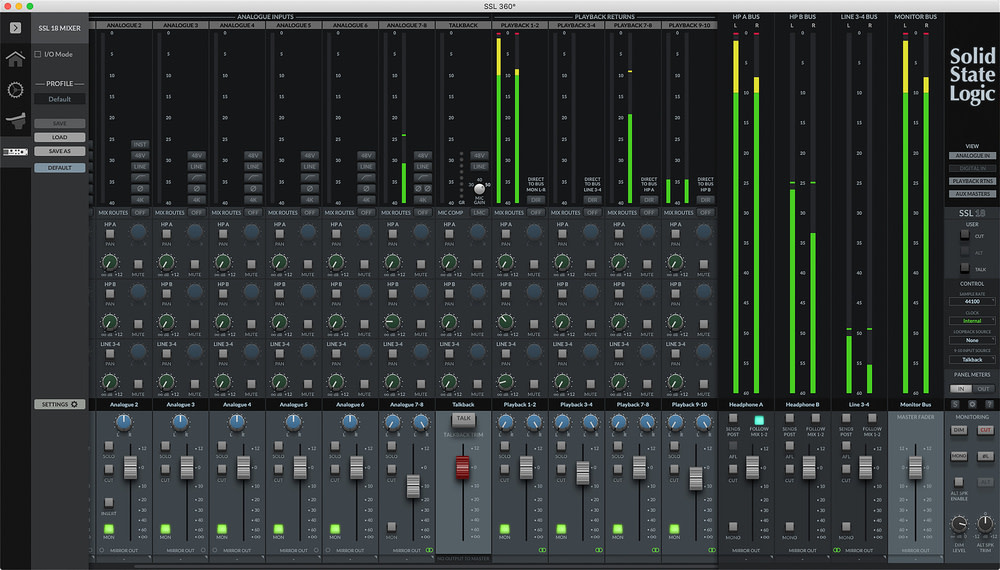

Comprehensive management of all inputs and outputs via the SSL 18 low-latency mixer:
- Create the control room mix, plus an additional 4 custom monitor mixes with ease – HP A (stereo), HP B (stereo), LINE 3-4 (stereo or dual mono).
- Flexible Mirror Routing system to route any input or aux master directly to an output – perfect for feeding personal monitoring systems, external metering and outboard FX.
- Customise the monitoring section front panel buttons to suit your workflow.
