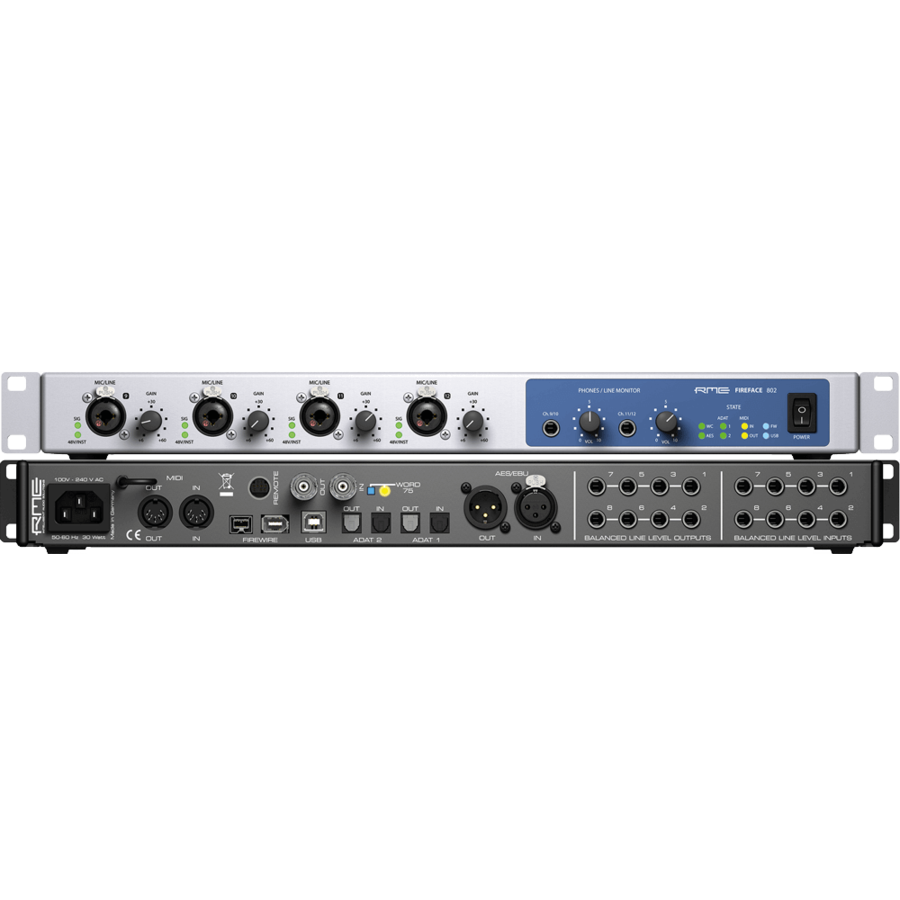

60-Channel USB 2.0 Audio Interface

• 24-bit / 192 kHz
• Built-in DSP mixer with effects section (EQ, dynamics and reverb)
• 4 Analogue microphone preamps with gain control
• Inputs remote controllable via software
• TotalMix Remote
• TotalMix FX mixing / routing
• DigiCheck software
• DC-coupled outputs - CV/Gate Voltage Control
• Stand-alone operation with setup recall
• ICC - Intelligent Clock Control
• SteadyClock FS
• +48V phantom power
• Class compliant
• Internal switching power supply, 100 - 240 V AC, 30 Watts
• Construction: 19" / 1U
• Dimensions (W x H x D): 438 x 44 x 242 mm
• Weight: 2.8 kg

Connections:

• 4 Mic/instrument / line inputs: XLR / jack 6.3 mm combo
• 8 Line inputs: 6.3 mm jack balanced
• 8 Line outputs: 6.3 mm jack balanced
• AES / EBU input and output: XLR
• Word clock input and output: BNC
• 2 ADAT / S/PDIF optical inputs and outputs
• 2 Stereo headphone outputs: 6.3 mm jack
• MIDI input and output
• USB
