Microphone Preamplifier and AD/DA Converter

• 8-Channel transformer-coupled Class-A microphone preamplifier and AD/DA converter 24 bit / 192 kHz
• 3-Stage Class-A preamps in 73 style
• Carnhill transformer
• Phantom power +48 V switchable per channel
• Low cut and phase reverse switchable per channel
• HP filter for channel 1 and 2: 20 - 250 Hz
• Construction: 19" / 3 U
• Dimensions (W x H x D): 482 x 88 x 280 mm
• Weight: 9.45 kg
• Incl. external power supply unit

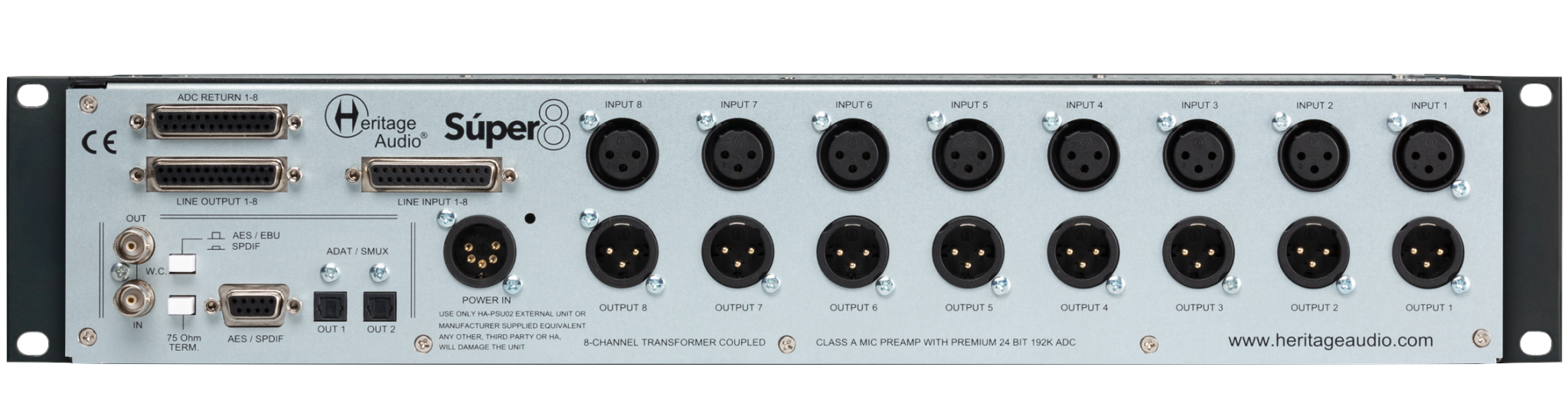

Connections:

• 8 Microphone inputs: XLR
• 8 Line inputs: Sub-D25
• 2 HI-Z instrument inputs: 6.3 mm jack
• 8 Line outputs: XLR
• 8 Line outputs: SubD-25
• 8 ADC return: SubD-25
• 2 ADAT outputs (SMUX)
• AES/EBU / S/PDIF: Coax 9-pin
• Word clock input and output: BNC
