AT A GLANCE

• Polyphony: 7
• Multitimbral: 4 parts
• Oscillators: 2 voltage-controlled analogue oscillators (VCO) with sub-oscillators. Hard sync.
• Oscillator Waveforms: Triangular, Saw-Tri, Sawtooth, Pulse with PWM. It is possible to mix the pulse with the other waveforms.
• Filter (VCF): 24dB / Oct low pass filter (4 poles) with resonance control.
• Envelopes: 2 (Attack, Decay, Sustain, Release), Velocity to Attack
• LFO: 3
• LFO waveforms: Triangular, Ascending ramp, Descending ramp, Square, Sample and Hold
• Effects: Chorus, Delay
• Presets: 512 programmes, 128 multi

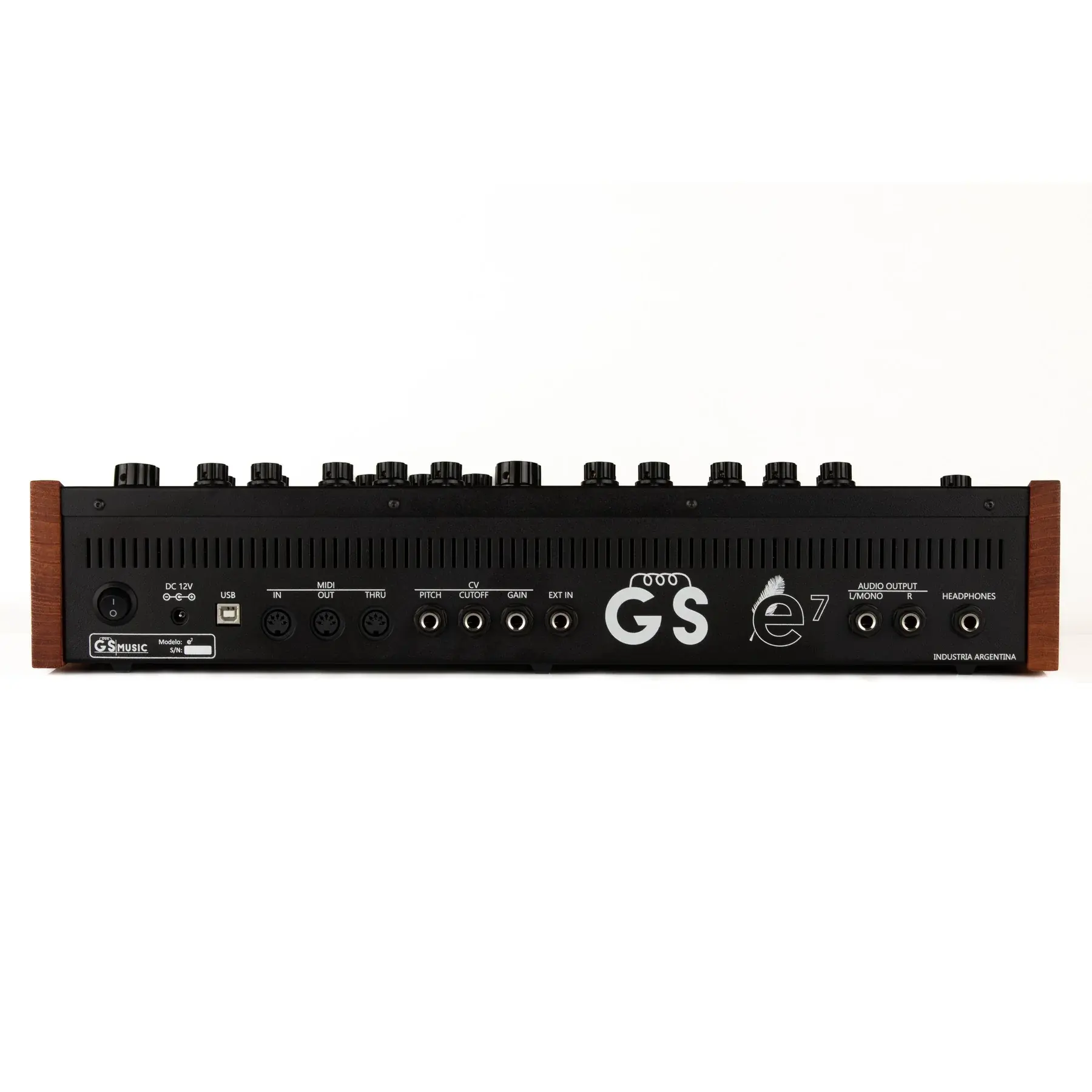

• Connections: MIDI IN, MIDI OUT, MIDI Thru, USB, Pitch CV, Cutoff CV, Gain CV, Ext input, Audio Out (L / Mono, R, 1 / 4" TRS balanced), Headphones
• Power supply: DC 12V 3A
• Dimensions: 520mm x 190mm x 108mm
• Dimensions (with packaging): 620mm x 290mm x 230mm
• Weight: 4.6 kg (estimated)
