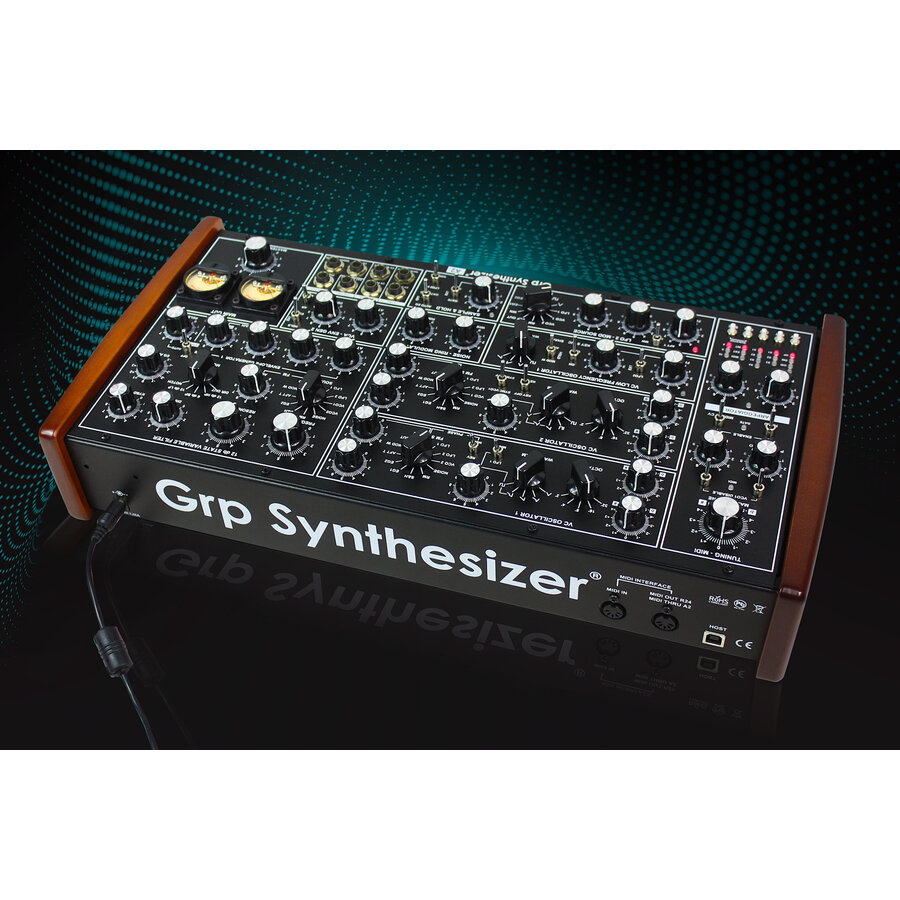

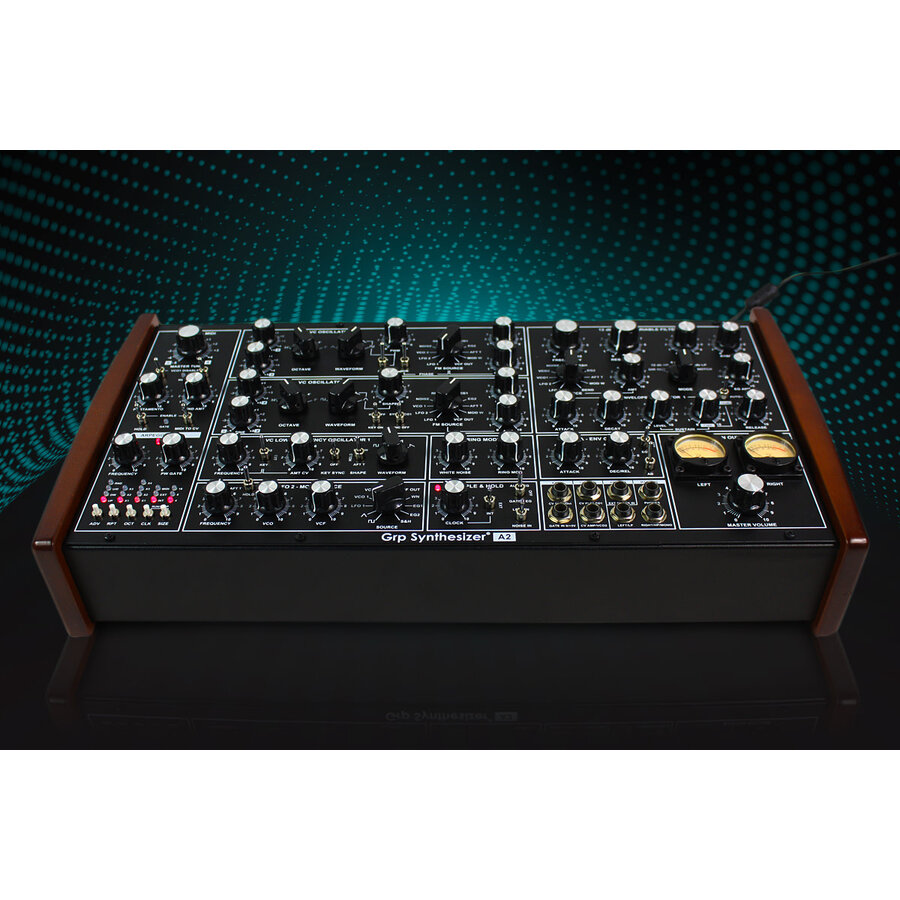

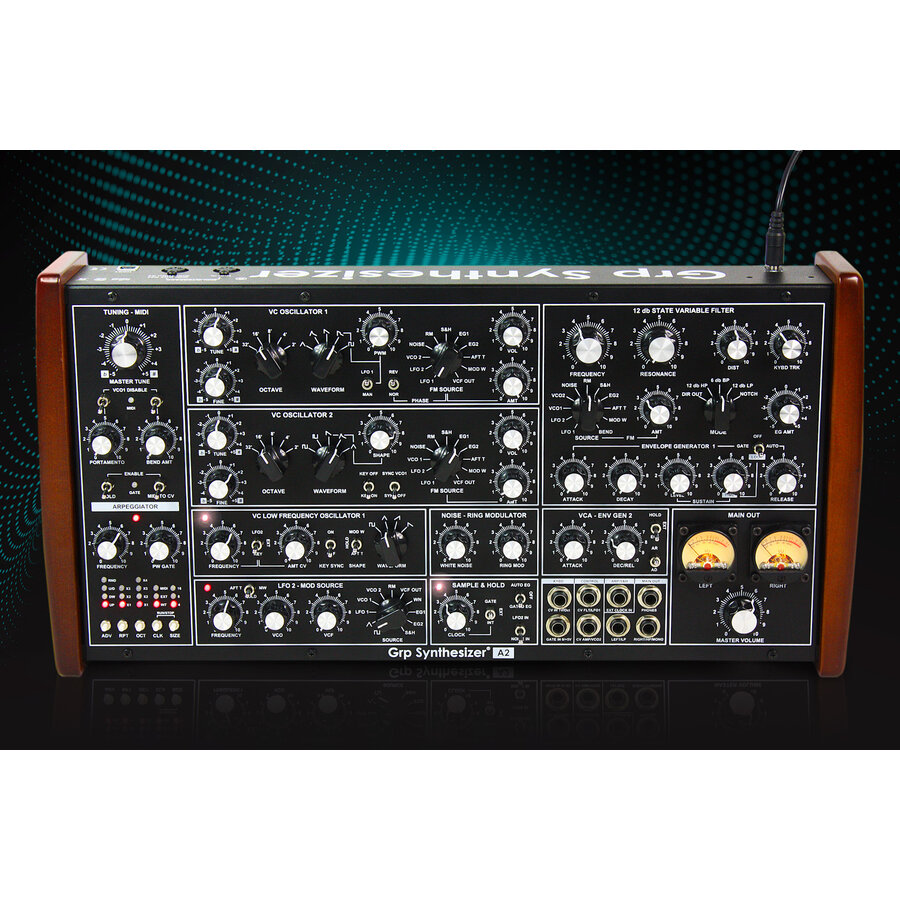

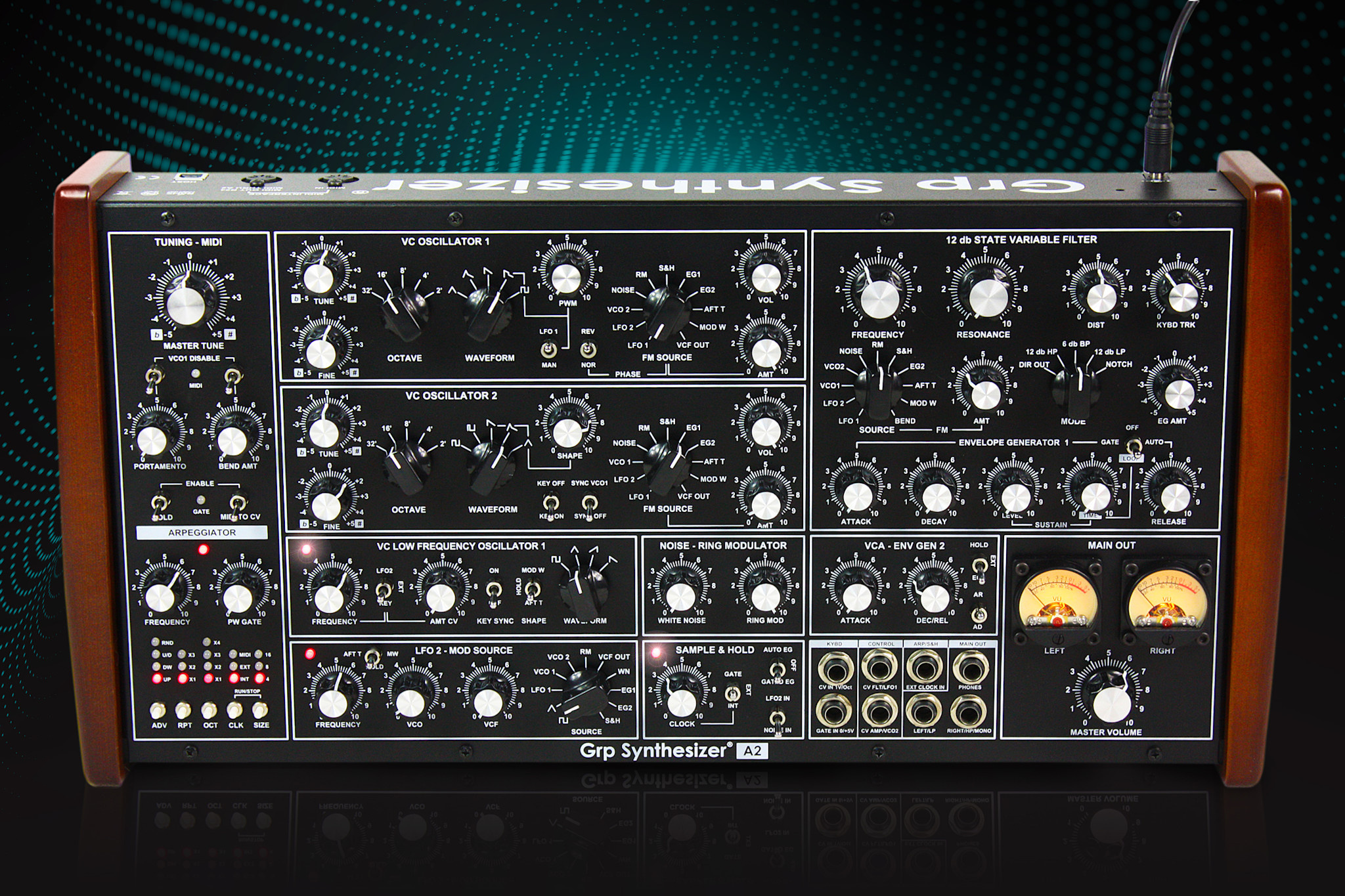

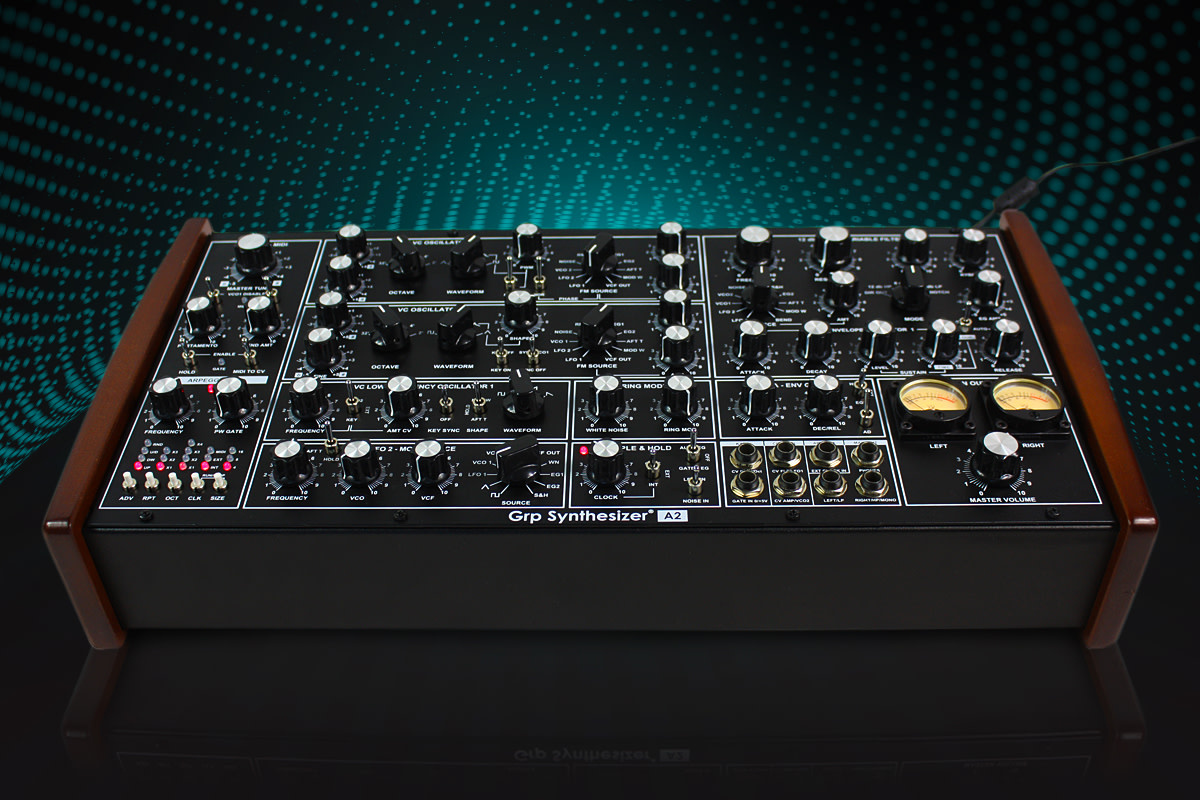

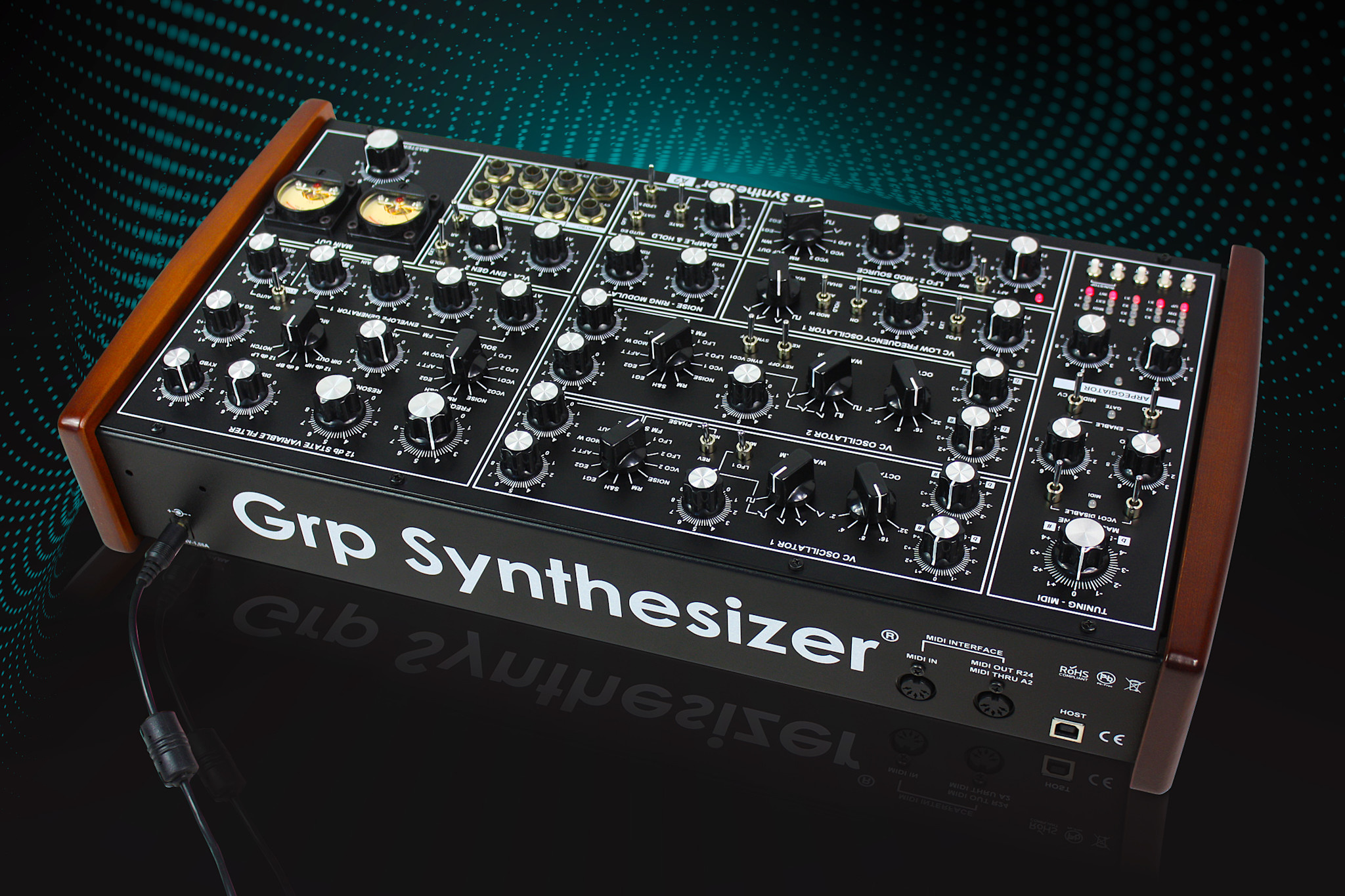

Wide 8 vertical space in 5U format or, if you prefer, optionally rack mountable, with a wooden sided dedicated cabinet, the Grp A2 Analog Synthesizer has MIDI In and Analog CV/Gate connections. It offers two big oscillators with the classic analog waveforms , from Grp, Plus Super Saw and Super Triangle; the great 12dB/Oct ; Grp State Variable Filter, one Ring Modulator (have you ever tried to ring modulate a 9-components Super Saw?), One Noise Generator, one Amplifier, one Master Out section with a couple of gorgeous analog Vumeters. There are a couple of Envelope Generators, the Filter-dedicated one with Looping capabilities as on big Grp A4 Synth and a couple of LFOs/Modulation Routings.
The on board Arpeggiator can be clocked by Internal Clock, ExternalAnalog Clock or MIDI Clock; easy and fun, it's a breeze to use. Grp A2 Analog Synthesizer is built like a tank. But is far more dangerous.
Technical Specs
Voltage Controlled Oscillator 1, 2
Wide audio range (32’-2’) w. Tune & Fine
Five analog waveforms (Triangle, Triangle & Saw summed, Saw, Saw & Variable Pulse summed, Variable Pulse); SuperSaw and SuperTriangle (only VCO2)
manual PW & PWM;
FM Exp w. Amt (from VCLFO1, LFO2, VCO1, 2, Noise, RM, S&H,EG1, EG2, Aft, ModW, VCF Out) w. phase rev
Hard sync (VCO 1 master)
Kybd on/off
Ring Modulator
Ring Mod Sources: VCO1 & VCO2.
Noise Generator
White Noise.
Audio Mixer
Separate level controls for VCO 1, 2, Ring Mod, Noise.
Filter Section
12 dB/Oct State Variable
Mode (12dB HP, 6 dB BP, 12 dB LP, 6 dB Notch)
Cutoff Frequency; Resonance
FM Amt (from VCLFO1, LFO2, VCO 1, 2, Noise, RM, S&H, EG2, Aft, ModW, Bend)
Kybd Track 0-120%
Distortion.
Filter section can be configured in Direct Out (LP goes on Left Audio Out, HP goes on Right AudioOut).
Voltage Controlled Amplifier
Dedicaded Envelope Generator (see below)
Control Selection (dedicated EG2, ON-hold, External CV)
Stereo Main
Master Volume, analog Vu-meters.
Envelope Generator 1
Multi Stage Loopable Env (Attack, Decay, Sustain Lev, Sustain Time-Only in Loop On, Release);
EG Amt
EG time goes from 1msec to 20 sec.
Loop Envelope: loop from Attack to Release, w. Sustain Time selectable.
Loop Mode Switch: Loop Off: EG as standard ADSR, no Sustain Time.
Gate: EG loops from A to S (w. Sustain Time max 60”) as long as Gate is On.
Auto: EG full loop, from A to R; independent from Gate.
Envelope Generator 2
Attack ,Decay/Release
Voltage Controlled Low Frequency 1
Frequency (from very low to 2500 Hz)
Waveform (Square, Triangle, Saw, Ramp)
FM Amt , FM Sources (Key, LFO)
Key Sync (Off – On)
Shaping LFO out (from: Hold,Aft,ModW)

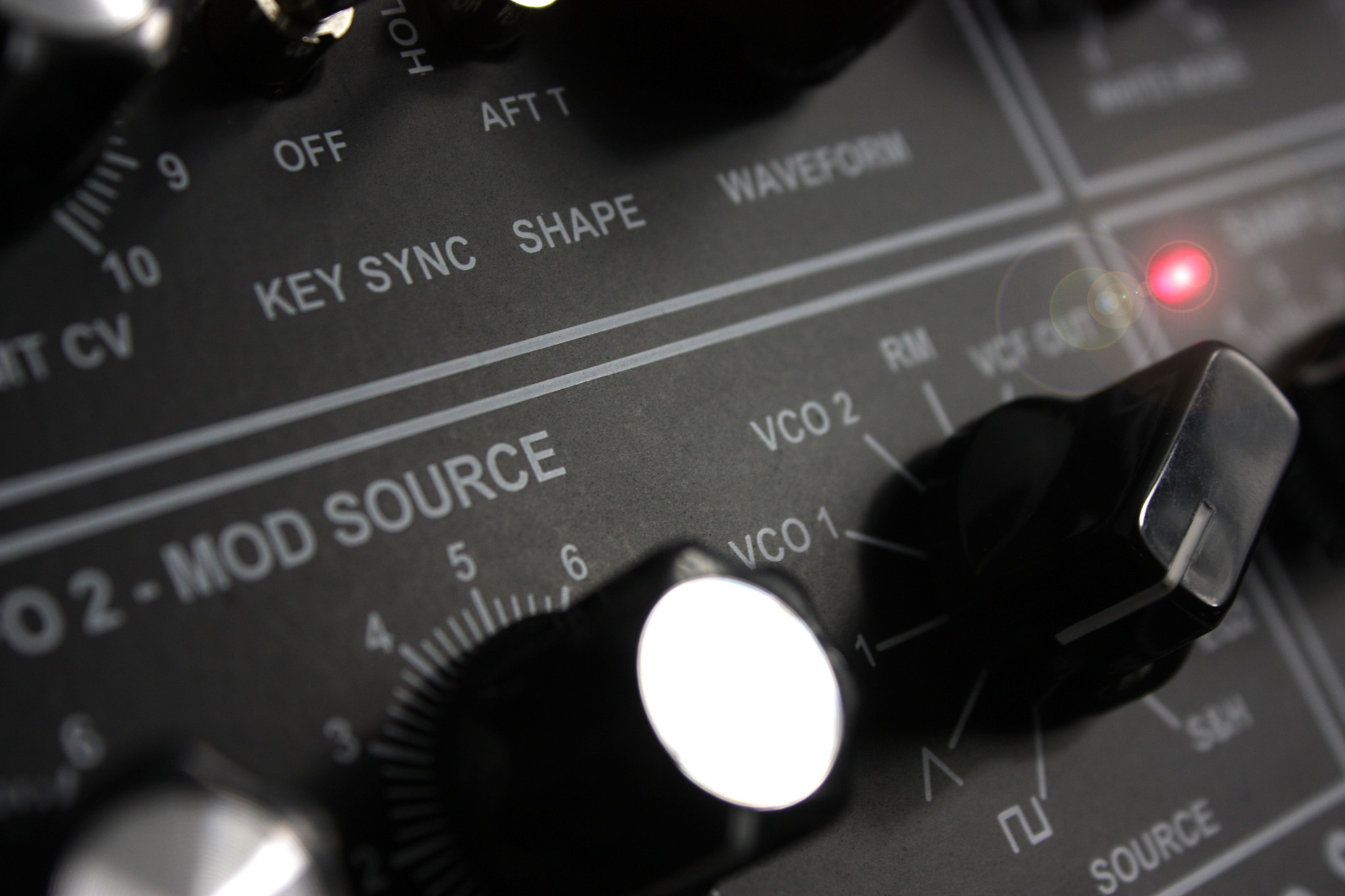

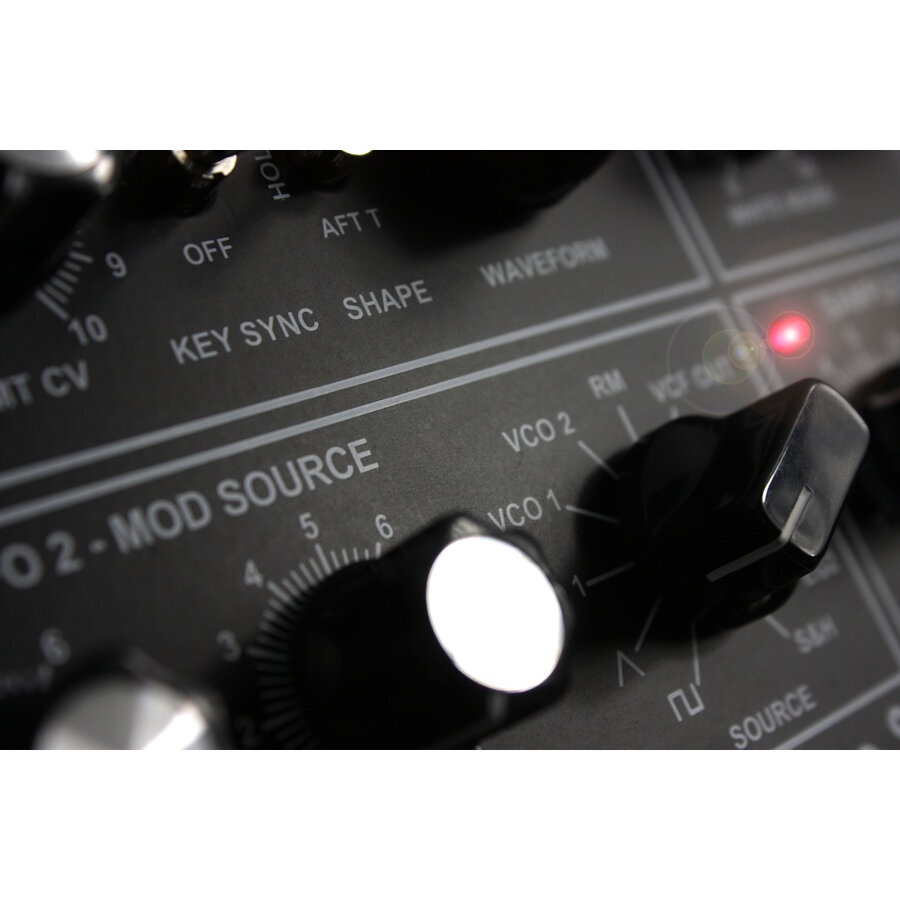

Voltage Controlled Low Frequency 2
Frequency
Freq Range (Low-Mid-High)
Waveform (Triangle, Square)
Shaping Select (Hold, Aft, ModW)
Indipendent Send Modulations for: VCO 1, 2; VCF Cutoff.

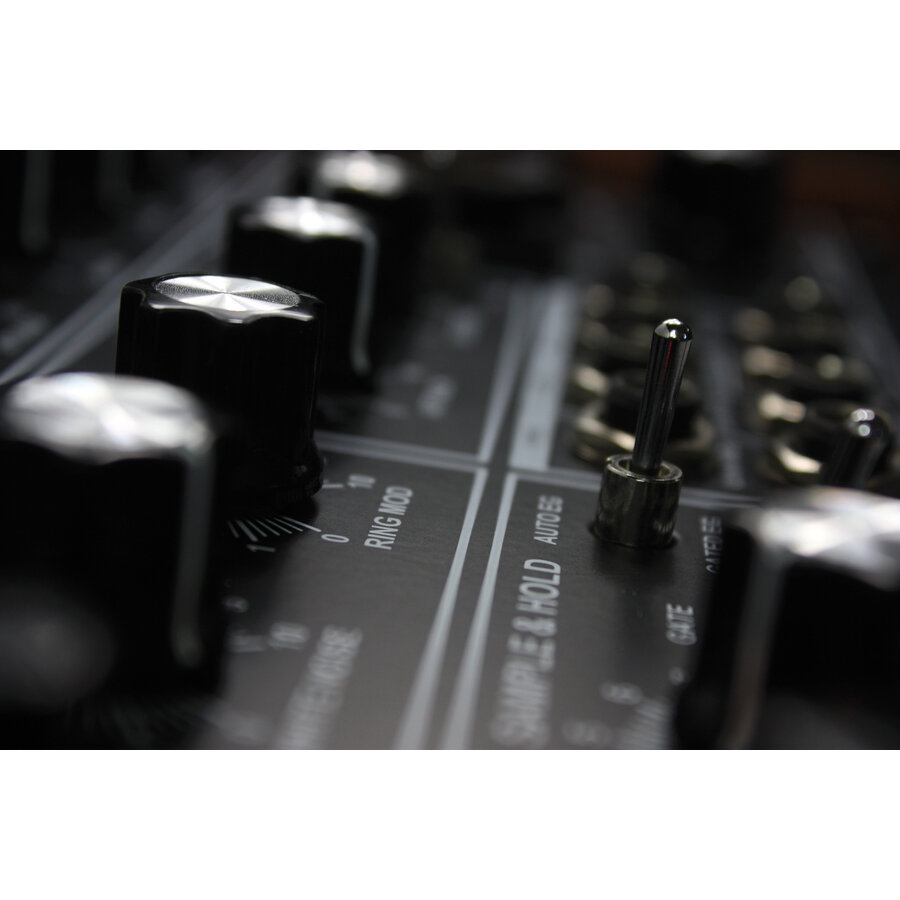

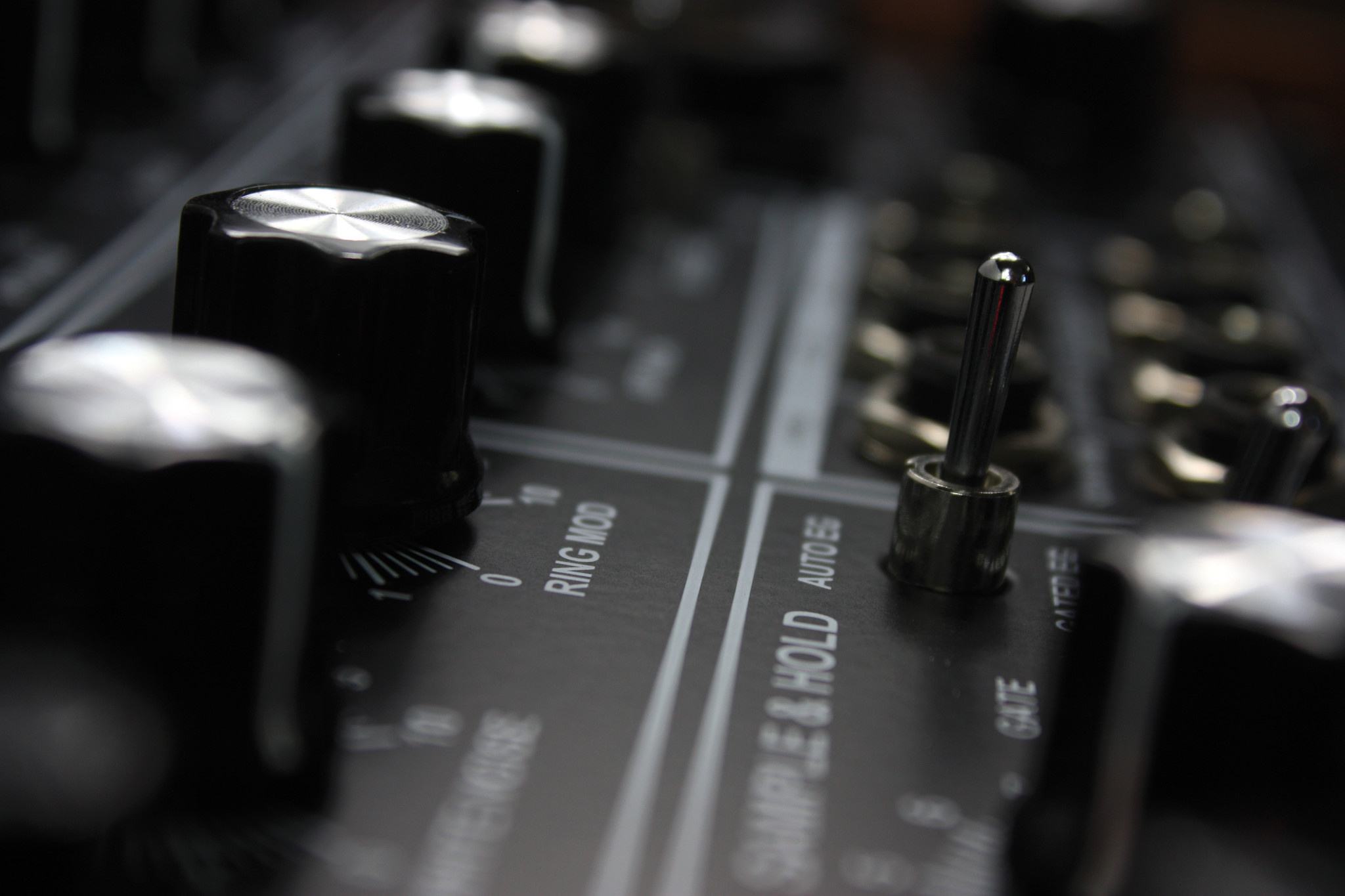

Sample & Hold
Frequency
Frequency Source (Int, Gate,Ext)
LED Frequency
S&H Source (Noise, LFO2)
The S&H Clock can be routed to EG firing; there are three options: Off – no routing; Gate – the S&H clock is ANDed with keyb/ext/manual Gate; Auto – EGs always fired from S&H.
Tuning - Midi
Master Tune
Portamento Time
Bend Amount
VCO 1 Portamento On/Off
VCO 1 Bend On/Off
Hold On/Off
Midi to CV On/Off
MIDI Interface: MIDI channel set at Power-On w. First MIDI Note received
A2 receives: MIDI Note On/Off, Bend, Modulation, Aftertouch, Damper, MIDI Clock.
Arpeggiator
Frequency and PW Gate (Legato/Staccato)
Controls Run/Stop user’s selectable,
Hold Mode for latching arpeggio
Selectable Advance Mode (Up, Down, U/D, Random);
Arpeggio Step Repeat (1x no repeat, 2x, 3x);
Arpeggio Octave Range (x1, x2, x3, x4)
Arpeggio Clock Source Selectable (Internal, External Analog Pulse, MIDI Clock)
Arpeggio Step Size (quarter note, eight note, sixteen note)

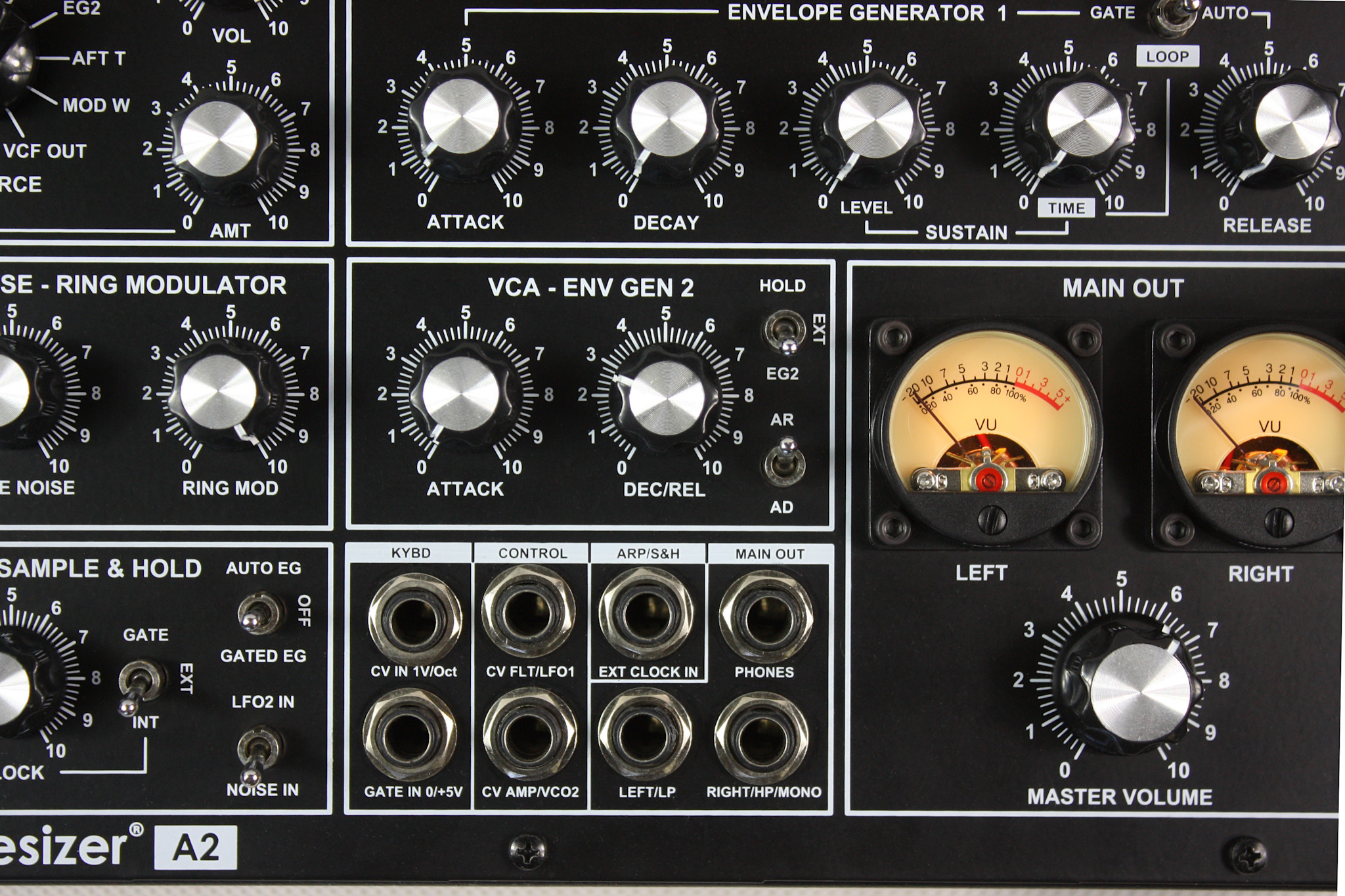

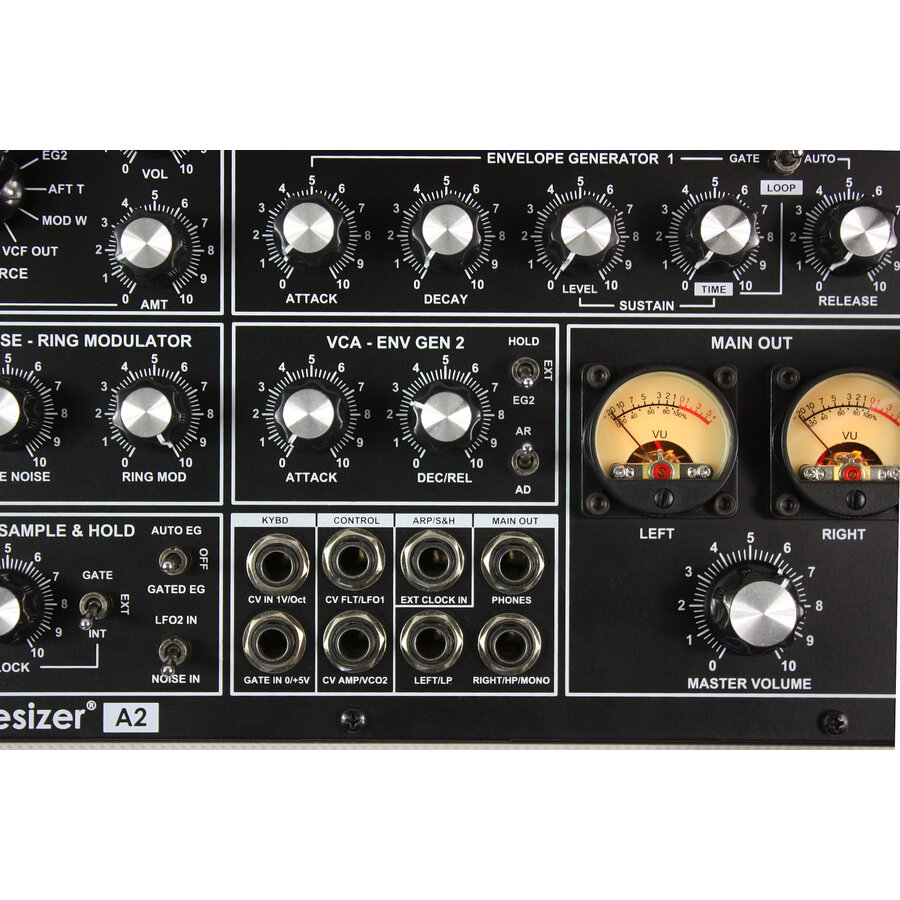

Connections
Audio: Stereo Phones Out; Left/LP Out; Right/HP Out.
CV Control In 1: Tip = Filter Cutoff CV In / Ring = LFO 1 Rate CV In
CV Control In 2: Tip = Amp Level CV In / Ring = VCO 2 Frequency CV In
External Analog Keyboard In: CV 1 (1V/Oct), Gate In (0/+5V)
ARP/S&H Clock In: External Clock In
Dimensions: 47,5 cm x 24 cm x 8,5 cm
Weight: 4,5 Kg
