Integrated high-impedance re-amping output with ground lift for flexible guitar recording
Two-channel effect loop with switchable output impedance
Additional Bluetooth stereo input and output
With max. resolution 24 bit / 192 kHz and up to 21 inputs and 22 outputs
4 High-quality combined preamps for microphone and instrument signals with variable input impedance
Switchable +48 V phantom power, -10 dB pad, phase inversion and high-pass filter
Complete monitor control with 2 stereo monitor paths, 2 individually adjustable stereo headphone outputs and source selection as well as integrated talkback microphone
2 Large rotary controls with push-button function for gain and volume as well as push-buttons for basic channel and monitoring functions provide instant access to all important parameters
DSP-based monitor mixer with switchable soft limiter and parametric
4-Band channel EQ per input, plus reverb and delay
4 Buttons and 2 footswitch connections for user-definable functions, plus start button for Mbox Control application
Ergonomic metal desktop enclosure with Kensington security lock

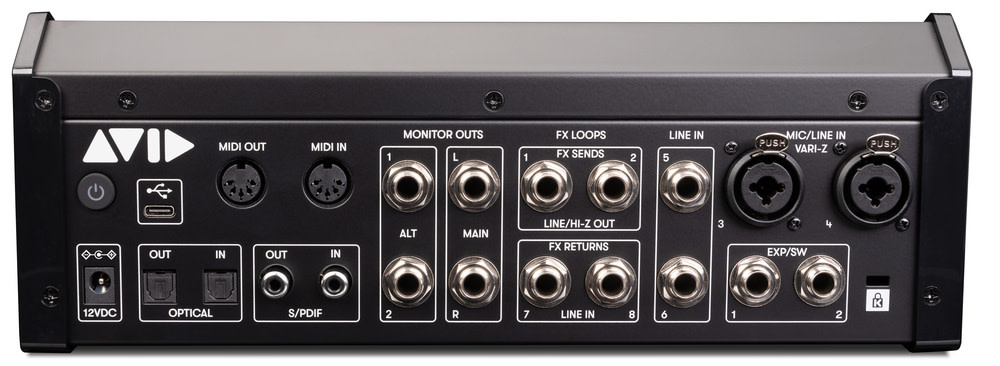

MIDI input and output: 5-pin DIN connector
2 Footswitches / foot pedal inputs: 6.3 mm TRS jack
Dimensions (W x D x H): 288 x 225.3 x 105.2 mm
Weight: 2.8 kg
Analogue inputs:
4x Combo input (XLR / 6.3 mm jack balanced)
4x Line / Fx return input (6.3 mm jack balanced)
Max. input level: 14 dBu, gain range: 60 dB, dynamic range: 112 dB (Mic / Line), 108 dB (Instr), THD+N: 0.001 % (Mic / Line), 0.004 % (Instr),
ON mic input: -129 dB (A-weighted), frequency response: 20 Hz to 20 kHz, ± 0.125 dB
Analogue outputs:
4x Monitor output (6.3 mm jack balanced)
2x Line / FX send output (6.3 mm jack balanced)
Max. output level: 19 dBu, dynamic range: 110 dB (monitor / line), 103 dB (Hi-Z), THD+N: 0.0012 % (monitor), 0.002 % (line, Hi-Z), frequency response: 20 Hz to 20 kHz, ± 0.125 dB (line, monitor), ± 0.3 dB (Hi-Z)
