The Asparion D700 DAW controller offers an all-purpose user interface for a state-of-the-art music production. Designed for maximum productivity it adapts to your needs unconditionally. With up to 64 motorized faders, countless LED push buttons and RGB rotary encoders there is no limit to your creativity. The multitude of connection options, like Midi, OSC and MQTT, controls everything the heart desires. From a DAW program to lighting software up to a music player and even a smart home.
Ultra compact and extremely robust
Through its attractive design with a depth of only 265mm the D700 finds its place on every desk. The low construction height of only 36mm contributes to its timeless design which makes it look good everywhere. Only 1.95m is needed to house 64 faders. The aluminum chassis with its anodized laser printed surface does not only look sophisticated but is also extremely robust. With the tremendous quantity of LEDs and the all-round translucent push button caps you have everything immediately in sight out of every perspective. That combined with the RGB encoders creates a true light spectacle.

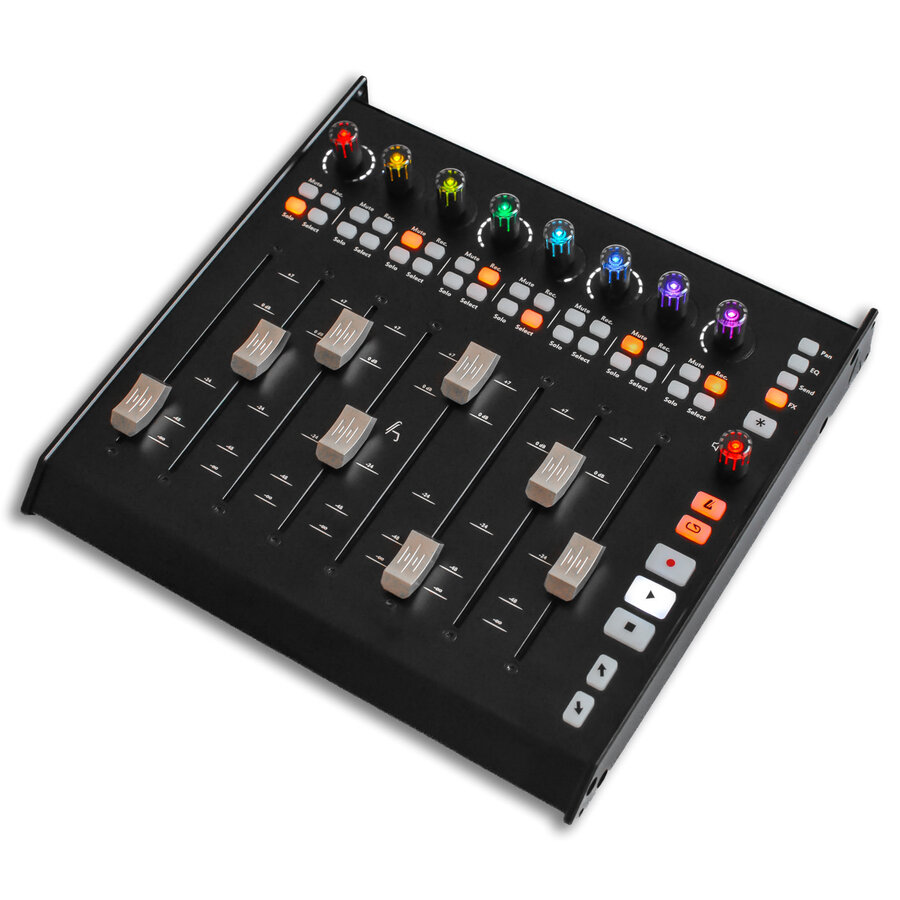

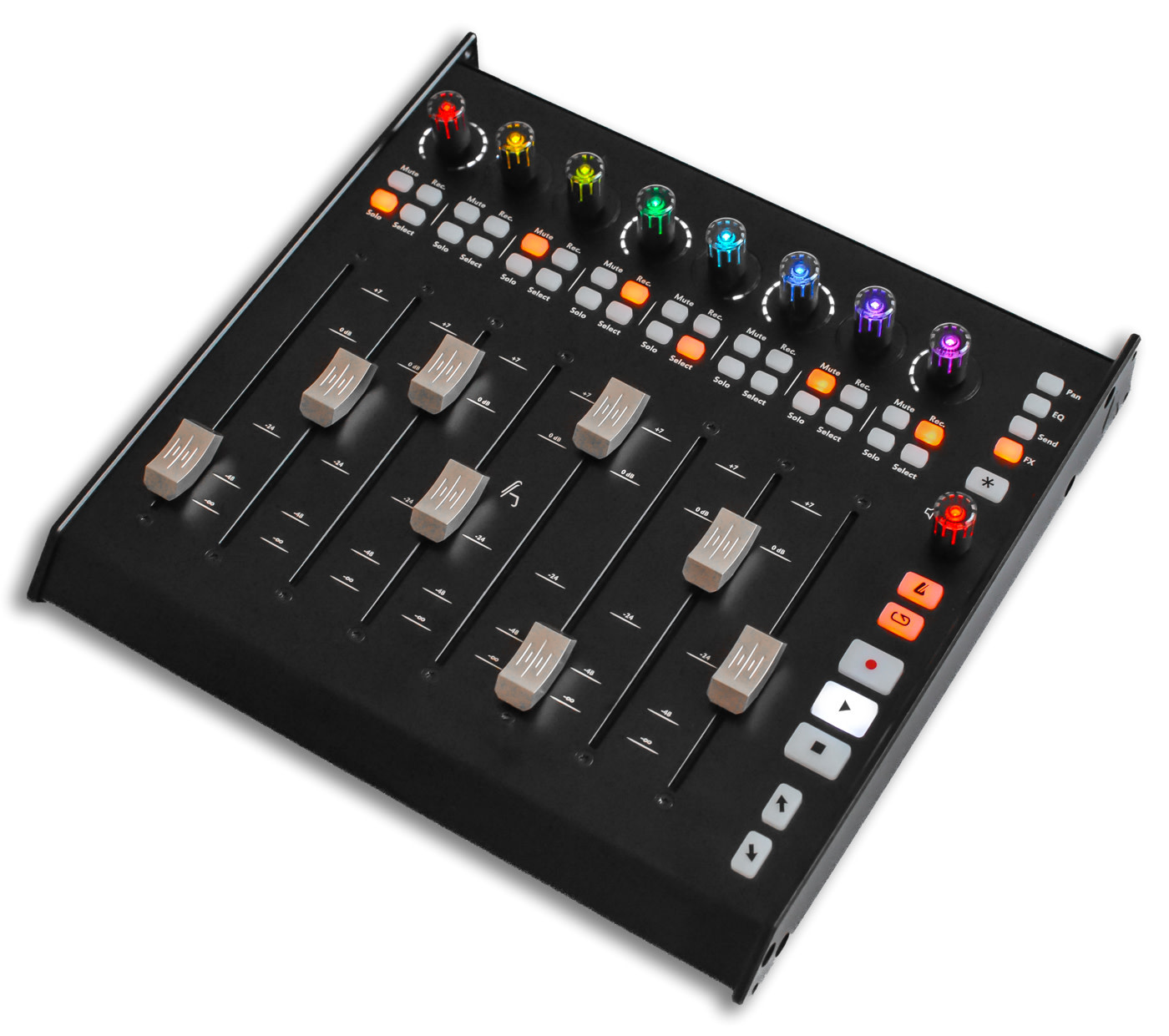

D700FT
The D700FT forms the basis. Besides all basic functions like "play", "stop" and "record" you can control the master volume with an RGB encoder. The buttons Pan, EQ, Send and FX will assign the respective function to the rotary encoders. Thereby a huge number of parameters can be controlled. The available sockets to connect a sustain or expression pedal give you the chance to even use your feet. You can connect up to 7 extensions to the D700FT which gives you up to 64 faders at the same time.
Asparion Configurator Software
Via the extensive software "Asparion Configurator" you can configure the smallest detail and your D700 will thereby be customized to your personal needs without any limitations.
Connection Options
Connected via USB-C the D700 can send Midi messages to almost any device. From a computer to a tablet up to a smartphone. Besides the universal Midi CC mode, the D700 is also compatible to the Mackie and HUI protocol. With that you can not only connect to the predefined Software (Cubase, Nuendo, Audition, Premiere Pro, Digital Performer, Live, Samplitude, Music Studio, Sequoia, Logic, Studio One, Tracktion, Waveform, Pro Tools, Reason, Reaper, Vegas, ACID Pro, Sonar, Cakewalk, FL Studio, Bitwig, Mixbus 32C, LV1, DMX Joker, MADRIX, Daslight) but also to a wide variety of other software.
Asparion Connector
A controller is only as useful as its connection options. That is why Asparion aims at making them as comprehensive as possible. The newly developed Asparion Connector multiplies the number of connection options of the D700. The software makes it possible to connect e.g. via OSC (Open Sound Control) and MQTT. With that not only a wide variety of software can be controlled but also a smart home. Combined with the automatic preset change the D700 can also be used when no DAW is active to complete tasks like adjusting the operating system's volume and control Spotify or dim the room lighting.
Technical Specifications
- up to 64 faders / 8 extensions
- anodized aluminum chassis, laser printed
- standardized midi protocol, OSC (Open Sound Control), MQTT
- Windows, Mac, Linux, Android, iOS, iPadOS
- 3-year warranty
- compatible with: Cubase, Nuendo, Audition, Premiere Pro, Digital Performer, Live, Samplitude, Music Studio, Sequoia, Logic, Studio One, Tracktion, Waveform, Pro Tools, Reason, Reaper, Vegas, ACID Pro, Sonar, Cakewalk, FL Studio, Bitwig, Mixbus 32C, LV1, DMX Joker, MADRIX, Daslight D700 FT
- 8 endless rotary encoders with snap and RGB led
- 8 LED rings with 15 LEDs each and 128 step mode
- 8 touch-sensitive highly precise 100mm motor faders with a resolution of up to 12bit (4000 steps)
- 44 programmable LED push buttons - 2x 6.35mm sockets for expression and sustain pedal
- USB C connector - 265 x 265 x 36mm (chassis)
